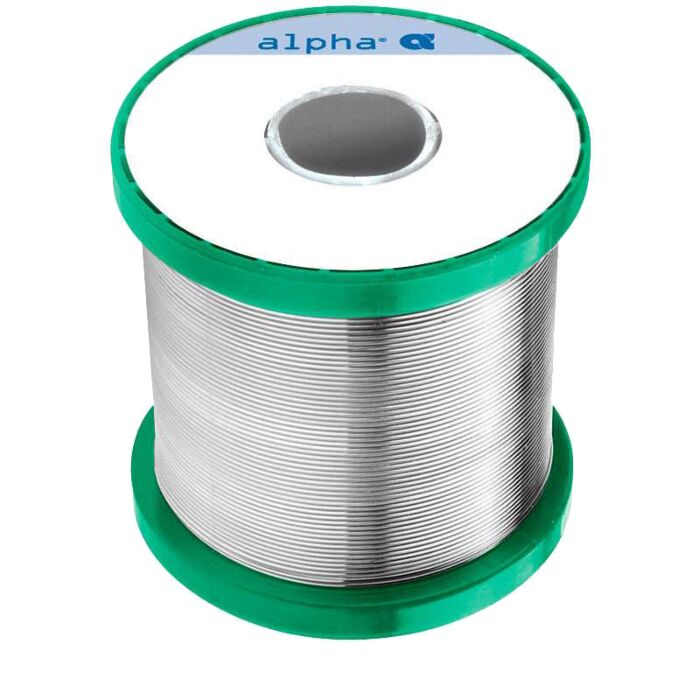

Alpha 160152 Telecore HF-850 Halogen Free Solder Wire, .020 [1lb Spool]

The ALPHA Telecore HF-850 is a cored solder wire suitable for use in any electronic or industrial no-clean soldering application that specifies compliance to the IPC J-STD-004-ROL0 standard.

Alpha 160152 Telecore HF-850 Halogen Free Solder Wire Higlights:

• Meets highest industry standard for reliability
• Very fast wetting for excellent component touch-up operations and manual assembly
• Halogen-free feature allows use of HF-850 in processes in which other halogen-free soldering materials are used
• Very low flux spatter and low levels of fumes for operator friendly use and a cleaner work environment
• Clear non-tacky residue does not require cleaning
• Good spread characteristics improve first pass yield (>80%)
• Excellent joint appearance for easy inspection
• Applications: Point Soldering, Drag Soldering, Pad Leveling In Rework, Automated Robotic Soldering, Electronic or Industrial No-Clean Soldering, Automotive, Consumer Electronics, Computer and Peripherals, Mobile Devices, Household Appliance

Alpha 160152 Telecore HF-850 Halogen Free Solder Wire Specs:

• Brand: Alpha
• SKU: 160152
• Series: Telecore HF-850
• Chemical Composition: Sn96.5Ag3.0Cu0.5
• Wire Diameter: 0.02in
• Flux Type: No Clean
• Product Type: Cored Solder Wire
• Maximum Melting Temperature: +221°C
• Color: Silver Gray
• Container Type: Spool
• Container Size: 1lb
• Standards Met: IEC 612249-2-21, JEDEC, TM EN 14582, J-STD-004B, IPC ROL0
