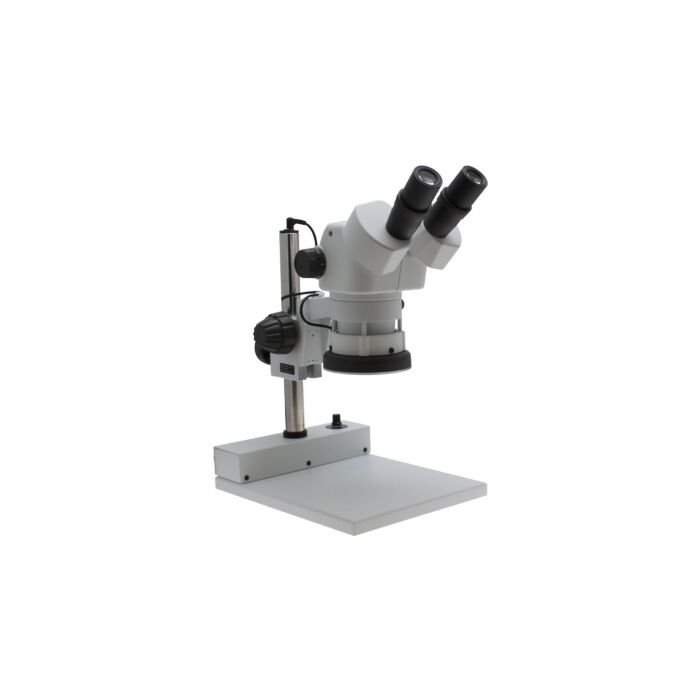

Aven 26800B-371 SPZ-50 Stereo Zoom Binocular Microscope

Aven 26800B-371 SPZ-50 Stereo Zoom Binocular Microscope

The Aven Tools 26800B-371 SPZ-50 Stereo Zoom Binocular Microscope offers the best in class zoom ratio with super sharp 3D images, wide field of view and long working distance, making it an ideal choice for high throughput inspection stations and engineering and science labs. The included 10x eyepieces provide 6.7x to 50x continuous zoom, which can be enhanced to up to 200x with optional auxiliary lenses and eyepieces. Furthermore, high precision optics ensure excellent contrast and definition for 3D images from edge to edge. A wide variety of lenses, stands and illumination is available to provide you with a microscope system to meet your individual requirements. The 26800B-371 SPZ-50 Stereo Zoom Binocular Microscope is mounted on a durable pole stand with built-in LED lights and a dimmer. The lightweight, compact stand features a rack-and-pinion focus mount with fine focus adjustment for precise control, a large base (8.7 x 11.2 in.), and 9.84 in. vertical post length.

Brightness Adjustment

The stand's built-in dimmer makes this an ideal scope for examining small parts and for where bench space is a premium. The energy-saving daylight 60 LED ring light with a dimmer control significantly reduces power consumption, ensuring a flicker-free experience that lowers energy costs and enhances productivity.

High Eye Point

The 10x eyepieces ensure comfortable viewing for all operators, including those who require eyeglasses. Diopter adjustment on both eyepiece tubes and a highly adjustable interpupillary distance of 52mm to 75mm provides operators with even more flexibility in their individual applications.

Adjustable Zoom Knob

Graduations on the zoom knob indicate to operators the exact magnifications at which they are working; this is particularly helpful for applications requiring very specific adjustments.

Aven 26800B-371 SPZ-50 Stereo Zoom Binocular Microscope Highlights:

• ESD Safe coating protects sensitive components from electrostatic discharges
• Constructed with superior optics and reliable mechanical components
• Delivers crystal clear high resolution images with wide magnification range of 6.7x to 50x
• Optional auxiliary lenses extend magnification range up to 200x
• Large 7.46:1 zoom ratio provides exceptional versatility
• Wide field of view from 34.3mm to 4.6mm (1.35" to 0.18")
• Long 108mm (4.25") working distance ideal for engineering and science labs
• 17mm high eye point 10x eyepieces ensure comfortable viewing for all operators
• Diopter adjustment on both eyepieces provides operators with more flexibility for individual applications
• Multi-coated optical components are free from chromatic or spherical aberration
• Graduations on zoom knob indicate exact magnifications, allowing for specific adjustments
• Compact pole stand equipped with built-in illumination and dimmer control knob
• Built-in ring light includes 60 eco-friendly LED lights for energy-saving operation
• Rack and pinion focus mount includes knobs for coarse and fine focus adjustment
• Large base size (8.7 x 11.2 in.) ensures stable operation

Included Components

• 1 - SPZ-50 Binocular Stereo Zoom Microscope Body (SPZ-50)
• 1 - Pole Stand with Built-In LED Illuminator (26800B-512)
• 2 - 10x (FN.23) Eyepieces
• 1 - Dust Cover
• 2 - Rubber Eye Guards
• 1 - Tension Control Pin

Aven 26800B-371 SPZ-50 Stereo Zoom Binocular Microscope Specs:

• Brand: Aven
• SKU: 26800B-371
• Zoom Ratio: 7.46:1
• Product Type: Binocular Microscopes
• Field of View: 1.35 to 0.18 in. (34.3 to 4.6 mm)
• Diopter Adjustment: +5.6D – 7.2D on both eyepieces
• Interpupillary Distance: 2.05 to 2.95 in. (52 to 75mm)
• Optical System: Greenough
• Stand Type: ESD Safe pole stand with built-in LED illuminator with dimmer control
• Post Height: 10 in. (255 mm)
• Base Dimensions: 8.66 x 11.8 x 0.6 in. (220 x 284 x 15 mm)
• Focus Mount: Coarse and fine focus
• Illumination: Integrated 60 LED ring light with dimmer
• Body Type: ESD Safe Binocular, 360° rotatable, 45° inclined eyepiece tube
• Pole Stand with Focus Mount and LED Illumination
• Lightweight, compact design saves bench top space
• Sturdy base and 10 in. post are ideal for examining small parts
• Eyepieces: Two 10x (FN 23) eyepieces; optional 15x (FN 15) and 20x (FN 11.4) eyepieces available separately to extend magnification range
• Magnification: 6.7x to 50x; up to 200x with optional auxiliary lenses
• Working Distance: 4.25 in. (108 mm) without auxiliary lens
