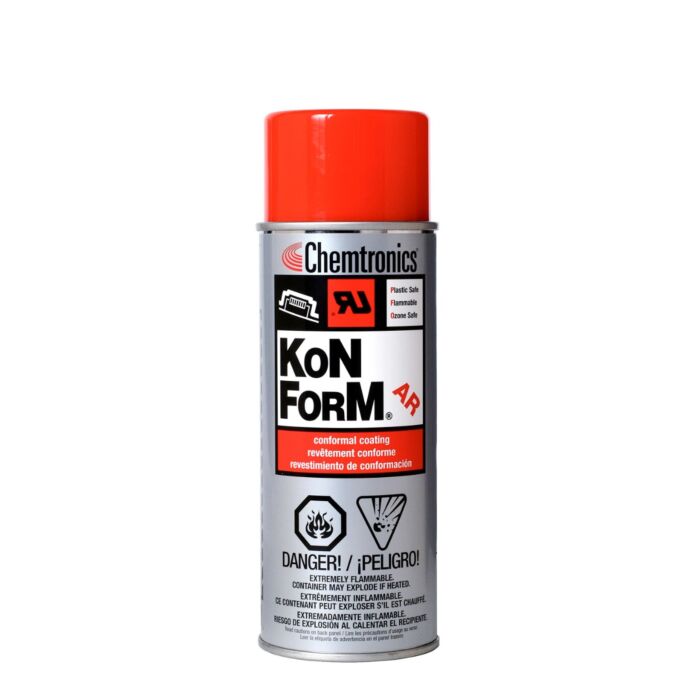

Chemtronics CTAR-12 Konform AR Acrylic Coating for High Voltage Arcing and Shorts [11.5oz]

The Chemtronics CTAR-12 is a conformal coating . Konform AR is ideal for providing insulation against high-voltage arcing and corona shorts. This extremely effective acrylic conformal coating provides a hard, durable protective barrier against humidity, salt, corrosive vapors and fungus for printed circuit board and electronic assemblies. Konform AR resin meets MIL-I-46058C, Type AR.

Chemtronics CTAR-12 Konfom AR Acrylic Coating Highlights

• Acrylic coating working temperature from -75 degree farad/-59 degree
• Celsius to 279 degree farad/137degree celsius
• High dielectric strength of 8300 volts/mil
• Meets MIL-I-46058c, type AR
• Compliant to IPC-CC-830A
• RoHS compliant
• Data Communications
• Instrumentation
• Automotive and marine manufacturing
• Process Control
• Provides excellent acid resistance
• Will not discolor over time under normal use
• Contains a UV indicator for thorough quality control inspection
• Easily repairable
• UL recognized, file e76307
• Standards Met: MIL-I-46058C, Type AR, UL Recognized File E76307, Compliant to IPC-CC-830A, RoHS Compliant, ANSI, GHS

Chemtronics CTAR-12 Konfom AR Acrylic Coating Specs:

• Brand: Chemtronics
• SKU: CTAR-12
• Product Type: Acrylic Conformal Coating
• Viscosity: 70± 5 @ 77°FcPs
• VOCs Content: 88.9%
• Minimum Operating Temperature: -75°F
• Maximum Operating Temperature: +270°F
• Length: 8.7 in
• Width: 2.7 in
• Height: 2.7 in
• View our Chemtronics SDS Sheets Here
