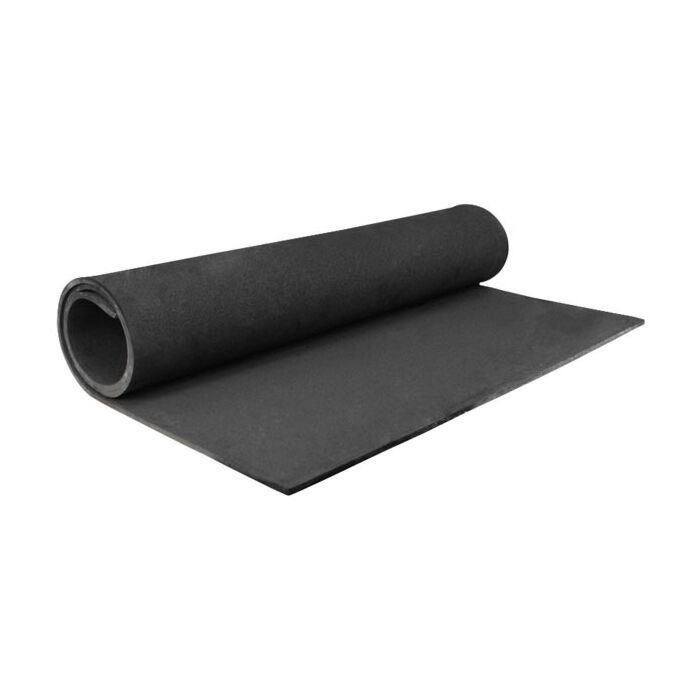

Desco 12667 Low Density Statfree Static Dissipative Foam

The Desco 12667 Statfree Static Dissipative Foam Roll, Low Density, 3/8 in. x 40 in. x 75 in. is a non-abrasive, closed-cell Polyethylene Foam Compounded for Permanent ESD Control Properties. The ESD protective properties will not degrade; the foam is designed not to flake, slough, or contaminate products. The foam will electrically couple to a grounded ESD worksurface when placed on the worksurface. There is no need for a separate ground cord for the foam when used in this fashion. The 1.9 lb/ft density provides cushioning protecting products from shock physical damage.

Desco 12667 Low Density Statfree Static Dissipative Foam Highlights:

• Polyethylene Foam compounded for permanent ESD control properties
• Creates ESD properties that will not degrade
• Superior to pink dissipative products where <10E9 Rtt and cushioning is required, such as worksurfaces, shelving, cart shelves, or material handling containers
• Dissipative 10E5 - 10E8 Ohms Rtt per ANSI/ESD S4.1
• Controls electrostatic charge removal from ESD susceptible items; meets ANSI/ESD S20.20 worksurface required limit
• Volume Resistance: 10E5 - 10E7 Ohms per ANSI/ESD STM11.12
• The foam will electrically couple to a grounded ESD worksurface when placed on the worksurface
• Closed-Cell cross linked structure
• Designed to not flake, slough, or contaminate products
• 1.9 lb/ft density cushion grade

Desco 12667 Low Density Statfree Static Dissipative Foam Specs:

• Brand: Desco
• SKU: 12667
• Material: Polyethylene
• Surface Resistance: 10^5 to 10^8Ω
• Density: 1.9lb/ft³
• Tensile Strength: 44psi
• Tear Resistance: 14lbf/in
• Color: Black
• Dimensions: 75 x 40 x 3/8in
• Length: 75in
• Width: 40in
• Thickness: 3/8in
• Standards Met: ASTM D3575-91, ANSI/ESD S4.1, ASTM D2575-91
