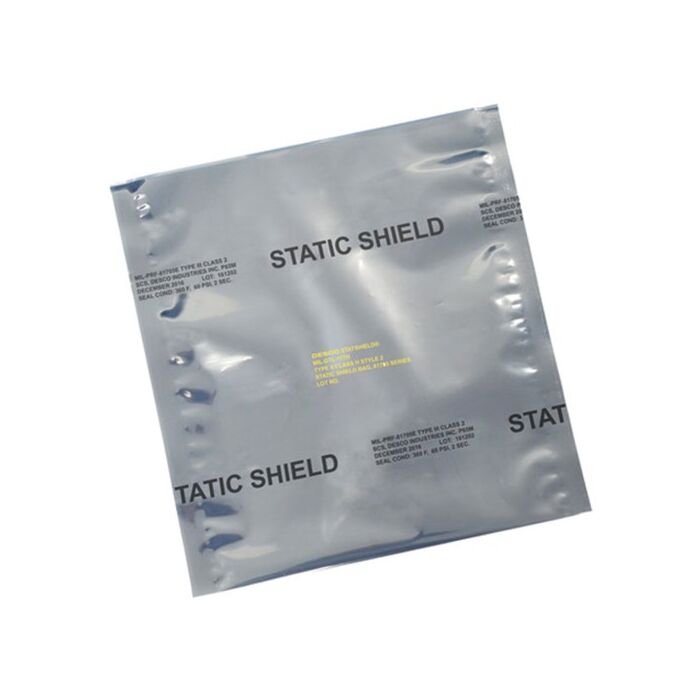

Desco 12923 ESD Static Shield Metal-In Bag [16x24]

The Desco 12923 Static Shielding Bags, 16"x24" are part The Desco 81705 translucent static shield metal-in bag is another quality product from Desco. The static shield metal-in bag is constructive of aluminum and protective properties such as static shielding. The overall length and width are 24 in x 16 in. Thickness is a key component to use of this product and measures in at 2.8 mil. This static shield metal-in bag meets the following standards: MIL-PRF-81705E, MIL-DTL-117H.

Desco 12923 ESD Static Shield Metal-In Bag Highlights:

• MIL-PRF-81705E Type III, Class 2 Qualified Film Laminate (0.0028”)
• Listed on the qualified products list (QPL) Defense Standardization Program for electrostatic discharge (ESD) protective materials. View HERE.
• Converted per MIL-DTL-117H
• Constructed and marked per requirements for heat-sealable bags used in military preservation.
• Material Identification Printed Between Polyester and Aluminum Shielding Layer
• Prevents markings from rubbing or sloughing off.
• <10 nJ Energy Limit Test per MIL-PRF-81705E Method 4.6.9
• Meets requirements1 for ESD shielding packaging inside and outside an ESD Protected Area (EPA).
• Dissipative Outer Surfaces Rtt <1 x 1012 ohms per MIL-PRF-81705E Method 4.6.8
• Allows bag to be used throughout an ESD Protected Area and grounded when placed on a grounded surface or handled by a grounded operator.
• Dissipative Inner Surface Rtt ≥ 1 x 105 to <1 x 1012 ohms per ANSI/ESD STM11.11
• Allows bag to be used with ESD susceptible items.

Desco 12923 ESD Static Shield Metal-In Bag Specs:

• Brand: Desco
• SKU: 12923
• ESD Safe: Yes
• Series: 81705
• Product Type: Metal-In Bag
• Protective Properties: Static Shielding
• Color: Silver
• Length: 24 in
• Width: 16 in
• Thickness: 2.8 mil
• Standards Met: MIL-PRF-81705E MIL-DTL-117H
