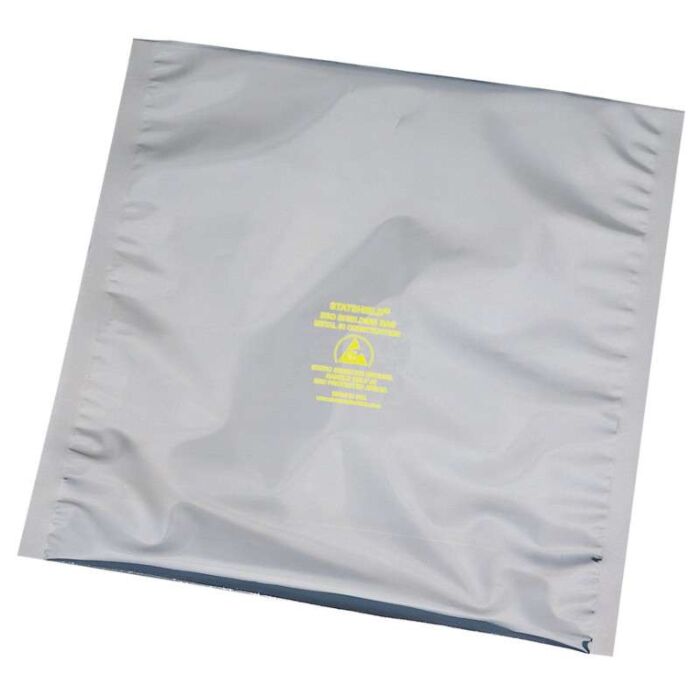

Desco 13429 Static Shield 3mil Metal-In Bag [5x7]

The Desco 13429 is a static shield bag . The Desco 13429 Statshield Metal-In Bag, 100 Count, 5 in. x 7 in. features a metal-in film laminate to protect ESD sensitive items from damage while in transit. This model can be used throughout an ESD Protected Area and grounded when placed on a grounded surface or handled by a grounded operator.

Desco 13429 Static Shield 3mil Metal-In Bag Highlights:

• Metal-In Film Laminate 0.0030" thick (3 mil)
• Protects ESD sensitive contents from electrostatic fields and electrostatic discharges (ESD)
• Dimensions: 5 in. x 7 in
• Bag can be used throughout an ESD Protected Area and grounded when placed on a grounded surface or handled by a grounded operator
• >10lb puncture strength average per FTMS 101C/4046
• Provides physical protection for contents
• Printed with ESD Protective Symbol and Lot Code Information
• Meets the requirements of ANSI/ESD S541 for quality control purposes
• Lead-free RoHS compliant
• Standards Met: ANSI/ESD S20.20, ANSI/ESD S541, ANSI/ESD S11.4, ANSI/ESD STM11.11, ANSI/ESD STM11.31, ANSI/EIA-541, MIL-STD-3010, ASTM D-1003, ASTM D882, FTMS 101C/2065, RoHS 2 Compliant, REACH

Desco 13429 Static Shield 3mil Metal-In Bag Specs:

• Brand: Desco
• SKU: 13429
• Product Type: Static Shield Bag
• Closure Type: Open Top
• Width: 5.5 in, 5in
• Height: 1.0 in
• Length: 7.5 in, 7in
• Thickness: 3mil
• Color: Gray
• Material: Aluminized Polyester; Polyethylene
• Tensile Strength: 9000psi
• Puncture Resistance: >10lb
• Applications: Electronic Devices
