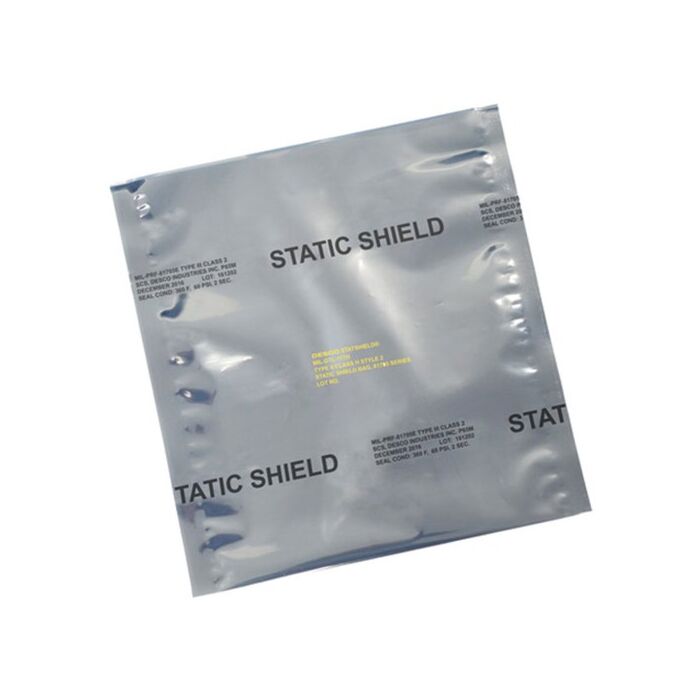

Desco 13460 ESD Static Shielding Open Top Bag [8x10]

The 13460 is an 8x10" open top static shield bag. The 3 mil thick Statshield‚ Metal-In series bag is designed to physically protect it's contents at the same time it is protecting it from electrostatic fields and discharges.These bags provide a static safe environment for electronic devices. The integral antistatic, low tribocharging properties prevent electrostatic charges during movement. The bags consist of three layers: an inner and outer static dissipative polyester layer, and a middle aluminum-shielding layer. The aluminum layer has the properties to discharge 5,000 volts to 0 volts in 50 µsec. The bags feature an amine-free construction allowing compatibility with polycarbonate for a non-corrosive, noncontaminating environment. Select from bags with or without zippers. Zippered bags feature a low charging zipper for a convenient, recloseable seal. Bags without zippers are heat sealable. Packs of 100 bags. Protect important electrical components from static charges Content identification made easy with transparent design

Desco 13460 Static Shielding Bag Highlights:

• Metal-In Film Laminate 0.0030 inch thick
• Protects ESD sensitive contents from electrostatic fields and electrostatic discharges
• Allows bag to be used throughout an ESD Protected Area and grounded when placed on a grounded surface or handled by a grounded operator
• Provides physical protection for contents
• Meets the requirements of ANSI/ESD S541 for quality control purposes

Desco 13460 Static Shielding Bag Specs:

• Brand: Desco
• SKU: 13460
• Color: Gray
• Material: Aluminized Polyester, Polyethylene
• Tensile Strength: 9000psi
• Puncture Resistance: >10lb
• Surface Resistance: 1 x 10^4 to < 1 x 10^11?
• Length: 10in
• Width: 8in
• Package Quantity: 100PH
• Applications: Electronic Devices
• Standards Met: ANSI/ESD S20.20, ANSI/ESD S541, ANSI/ESD S11.4, ANSI/ESD STM11.11, ANSI/ESD STM11.31, ANSI/EIA-541, MIL-STD-3010, ASTM D-1003, ASTM D882, FTMS 101C/2065, RoHS 2 Compliant, REACH
• Thickness: 3mil
