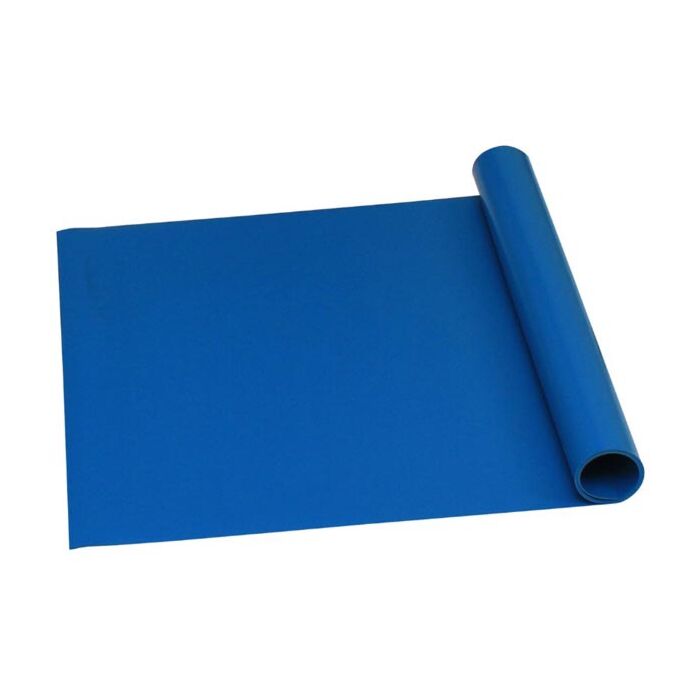

Desco 16316 Truestat B80 Worksurface Table Vinyl Mat Roll

The Desco 16316 is a 50' x 24", Trustat blue roll mat. The mat is designed to provide a reliable path to ground and eliminate static charge generation when used as an ESD worksurface table mat, a cart liner or a shelf liner. The Desco 16316 Trustat B80 Vinyl Mat Roll, Blue, .080 in X 24 in. X 50 ft., is made from extruded homogenous vinyl, making it an ideal economic worksurface table mat, shelf liner, or cart liner. The mat's dissipative material meets the ANSI/ESD S20.20 worksurface required limit as well as the recommendation of ANSI/ESD S4.1 when properly grounded. The 0.080 in. thickness of the mat provides additional energy absorption for components susceptible to physical shock.

Desco 16316 Truestat B80 Worksurface Table Vinyl Mat Roll Highlights:

• Made from extruded homogenous vinyl
• Serves as economic choice for an ESD worksurface table mat, shelf liner, or cart liner
• Dissipative material: 1 x 106 to < 1 x 109 ohms Rtt
• Meets ANSI/ESD S20.20 worksurface required limit
• Meets recommendation of ANSI/ESD S4.1 when properly grounded
• Thick 0.080 in. material provides additional energy absorption for components susceptible to physical shock
• Lot traceability information ensures quality control and provides tracking information for the product lifespan

Desco 16316 Truestat B80 Worksurface Table Vinyl Mat Roll Specs:

• Brand: Desco
• SKU: 16316
• Product Type: Roll Mat
• Material Properties: Dissipative
• Color: Blue
• Dimensions: 50 ft x 24 in x 0.08 in
• Length: 24.25 in, 50ft
• Width: 24in, 8.75 in
• Height: 8.75 in
• Thickness: 0.08in
• Surface Texture Type: Smooth
• Decay Time: <0.01s
• Applications: Industrial
• Standards Met: ANSI/ESD S4.1, ANSI/ESD S20.20, RoHS
