Desco 19282 Combo Wrist Strap & Footwear Resistance Tester

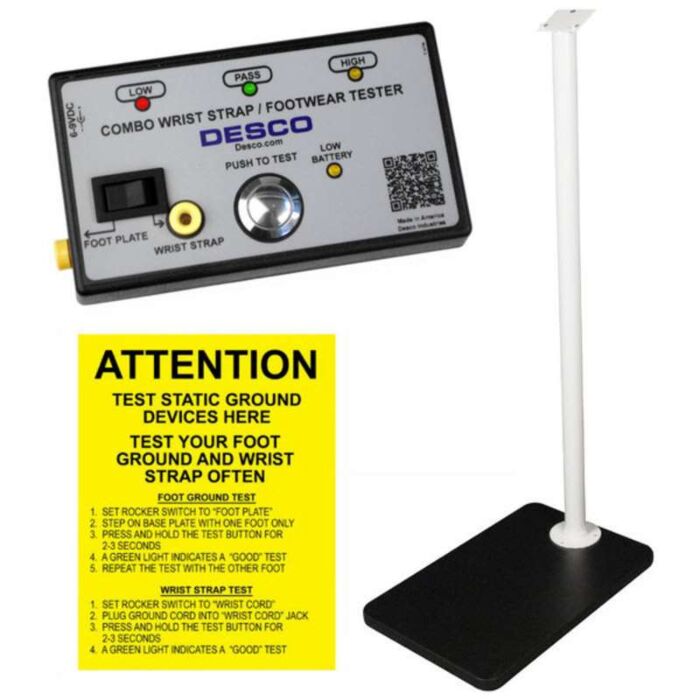

Desco's 19282 is a 9 V rated voltage combo tester with a foot plate ground wire. It Highlights a rocker switch that enables the operator to quickly test all personal grounding devices.The Desco 19282 Wrist Strap and Footwear Combo Tester, with Stand and Footplate verifies the functionality of an operator's wrist strap and footwear. It determines if an operator's wrist strap and footwear will function correctly. A rocker switch allows the operator to select a wrist strap or footwear test. A green light indicates that the wrist strap or footwear is passing, and red and yellow lights plus an audible alarm indicate when the wrist strap or footwear is failing. If failure occurs, the tester will also display if the grounding device's resistance is too low or too high. The 19282 may also be used to test smocks or garments that feature a grounding mechanism for operators using a coiled cord connection.

Desco 19282 Wrist/Footwear Resistance Highlights:

• Separate Test Circuits for Wrist Straps and Foot Grounders
• Rocker switch allows operator to quickly test all personal grounding devices
• Includes stand and footplate
• Tests operator's path-to-ground
• Wrist strap limits 750 kilohms to 10 megohms; footwear limits 750 kilohms to 100 megohms
• Determines that operator's personal grounding device is functioning correctly
• Separate test circuits for wrist straps and foot grounders
• Rocker switch allows operator to quickly test all personal grounding devices
• Durable, stainless steel test button
• Long lasting; reduces wear and tear
• Powered by 9V battery
• NIST Calibrated with certificate included

Desco 19282 Wrist/Footwear Resistance Specs:

• Brand: Desco
• SKU: 19282
• Product Type: Combo Tester
• Voltage Rating: 9V
• Power Source: Battery
• Accuracy: ±20%
• Battery Type: 9 V Battery
• Dimensions: 3.3 x 5.6 x 1.5in
• Length: 18.0 in
• Height: 36.0 in
• Width: 12.0 in, 5.6 in
• Depth: 1.5 in
• Maximum Operating Temperature: +104°F
• Minimum Operating Temperature: +32°F
• Standards Met: ANSI, ESD S20.20
• Includes: Foot Plate, 9 V Battery, Foot Plate Ground Wire, Pedestal, 3 x Button Head Screws, Allen Wrench, Flat Head Screw, Knurled Nut, Cap, Poster, Combo Tester
