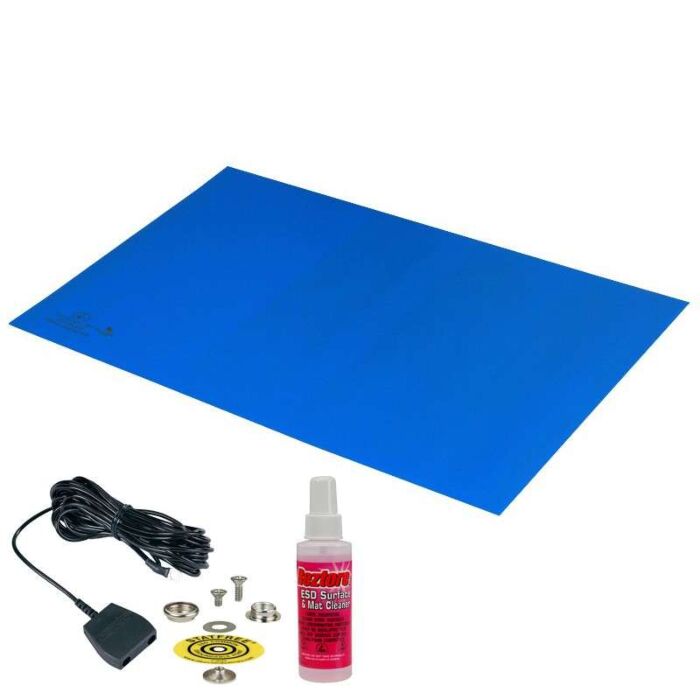

Desco 42465 Statfree Z2 Dissipative 3-Layer Mat Top Kit

The Desco 42465 is a 24 x 48" Statfree mat top kit. The lead-free kit has laser engraved ESD protective symbol, specs, and manufacturer details marked on it. It can be used as a work surface table mat, a shelf liner, or a cart liner, and with monitors.The Desco 42465 Statfree Z2 Dissipative 3-Layer Vinyl Mat Kit, Blue, .125 in. X 24 in. X 48 in., combines an abrasion-resistant dissipative top layer, a conductive mesh middle layer, and a dissipative cushioned bottom layer to meet the ANSI/ESD S20.20 worksurface required limit and the recommendation of ANSI/ESD S4.1 for contact with ESD susceptible items. The cushioned bottom layer also provides additional energy absorption for components susceptible to physical shock. The mat is made from a heat fused three-layer vinyl composite that provides reliable path to ground and eliminates static charge generation as a worksurface table mat, shelf liner, and cart liner.

Desco 42465 Statfree Z2 Dissipative 3-Layer Mat Top Kit Highlights:

• Dimensions: .125 in. X 24 in. X 48 in.
• Made from heat fused 3-layer vinyl composite
• Provides reliable path to ground
• Eliminates static charge generation as a worksurface table mat, shelf liner, or cart liner
• Blue colored, dissipative abrasion-resistant top layer: 1 x 106 to < 1 x 109 ohms Rtt
• Meets ANSI/ESD S20.20 worksurface required limit
• Meets recommendation of ANSI/ESD S4.1 for contact with ESD susceptible items
• Conductive grid mesh middle layer: < 104 Rtt
• Reduces resistance to ground (Rtg) from top of surface to groundable point ground
• Allows mat to be used with monitors
• Dissipative cushioned bottom layer: 1 x 106 to < 1 x 109 ohms Rtt
• Provides additional energy absorption for components susceptible to physical shock
• Electricals will not drift for the life of the mat
• Laser engraving identifies material as ESD protective for control and auditing purposes
• Lead-free RoHS compliant
• Supplied with grounding hardware

Desco 42465 Statfree Z2 Dissipative 3-Layer Mat Top Kit Specs:

• Brand: Desco
• SKU: 42465
• Dimensions: 48 x 24 x 0.125in
• Length: 48in
• Width: 24in
• Thickness: 0.125in
• Resistance: 1 x 10^6 to 1 x 10^9?
• Decay Time: <0.01s
