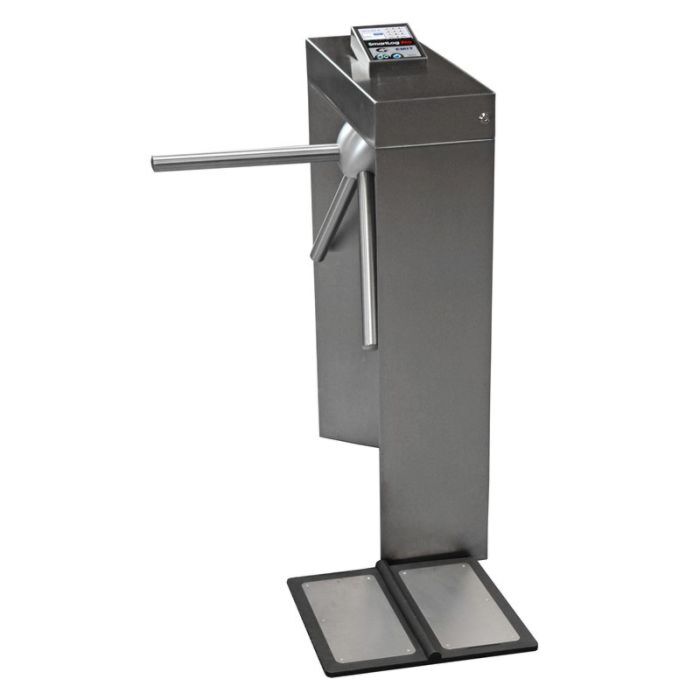

Desco 50781 Emit Alvarado EDC Turnstile with SmartLog Pro, 120VAC

The Desco 50781 Emit SmartLog Pro with Alvarado EDC Waist High Turnstile verifies the functionality of an operator's wrist strap and footwear, logs the test results, and controls access to an ESD Protected Area. The turnstile unlocks after the operator's wrist strap and/or footwear is determined to act as a path-to-ground. All operator test activity is logged into a database to meet the ANSI/ESD S20.20 requirements for on-going quality control purposes. Each log entry includes operator identification, test results, resistance measurements, time, temperature and humidity. The Alvarado EDC Waist High Turnstile features a rugged industrial grade controller, optical rotation detection (no mechanical microswitches to break or continually adjust), and adjustable time out functionality (turnstile relocks if there is no passage through the unlocked turnstile). An adjustable dampener slows and cushions the rotation and self-centers the turnstile arms to the home position. Stainless steel internal and external components make the turnstile durable and easy to maintain. The turnstile is configured to Fail-Safe Loss-of-Power Operation. Should loss of power occur, the turnstile's arms will unlock and rotate freely in both directions to allow operators to pass through.

Desco 50781 Emit Alvarado EDC Turnstile with SmartLog Pro Highlights:

• Turnstile activates when a user passes their required ESD test limits access to the ESD protected area to people wearing proper ESD grounding devices.
• Electronic data acquisition creates test record database for auditing and quality control.
• Operator identification tests operators based on assigned test requirements.
• Simultaneous testing in less than 2 seconds reduces time spent testing personal grounding devices used in ESD control plans.
• Stand-alone operations can continue performing tests even in the event of a network failure.
• Embedded CCD barcode scanner reads code 39 and 128 by default.
• Split foot plate for testing foot grounders (or shoes) tests both foot grounders independently at the same time.
• NIST is calibrated with accepted procedures and standards traceable to the National Institute of Standards and Technology.
• 5 inch color touchscreen display that intuitive user interface for easy test operation.
• Records resistance measurements, temperature and relative humidity, tracks the performance of ESD wrist straps and footwear.

Desco 50781 Emit Alvarado EDC Turnstile with SmartLog Pro Specs:

• Brand: Desco
• SKU: 50781
• Cable Length: 5ft
• AC/DC Power Adapter
• Product Type: Turnstile
• Weight (Crated): 385lbs
• Power Output: 5VDC, 3.0A
• Weight (Uncrated): 285lbs
• Power Input: 100-240V, 50/60 Hz
• Turnstile Input Voltage and Frequency: 110V, 50/60 Hz (50781)
• Operating Temperature: 70°F to 85°F (21°C to 30°C) for 1 gigohm test limit / 41°F to 85°F (5°C to 30°C) for all other test limits
