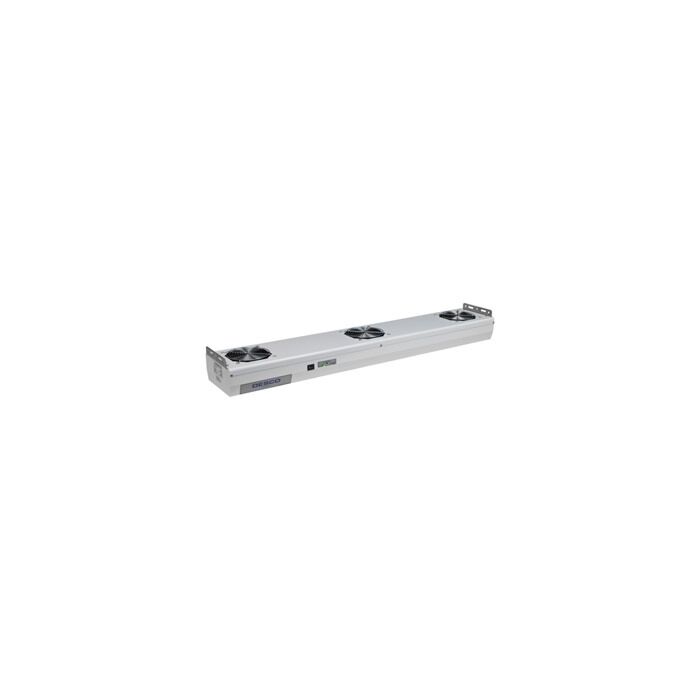

Desco 60468 Chargebuster Overhead Ionizer with Lights, 3 Fans

The Desco 60468 Chargebuster Overhead Ionizer with Lights and 3 Fans, 120VAC is a steady-state DC ionizer designed for use in ESD protected areas. This 3-fan ionizer has a 2' x 5' coverage area, and the discharge times (< 3 seconds at 18") and low offset voltage (±10 volts) meet the required limits of ANSI/ESD S20.20 < ±35 volts tested per ANSI/ESD STM3.1 and ESD TR53. Its emitters are made of pure tungsten and spaced further apart to minimize ion recombination, increase discharge efficiency and provide a broader coverage area. The fans have 3 speeds (high, medium, low) which produce consistent performance at all 3 settings. The 60468 utilizes an auto-feedback system that continuously optimizes its performance and automatically alarms and shuts down should its supply voltage drop. This model includes two 700 lumen light panels (cool white) that provide additional illumination to the work area and improves visibility and productivity.

Desco 60468 Chargebuster Overhead Ionizer Highlights:

• Three fan steady-state DC ionization for 2' x 5' coverage area
• Neutralizes electrostatic charges on insulators and ungrounded conductors within the coverage area
• 3 seconds or less discharge time with ±10 volts offset voltage (balance)
• Meets the required limits for ionization use in electronics manufacturing areas per ANSI/ESD S20.20 and ESD TR53
• Two 700 lumen LED panel lights (cool white)
• Adds additional light to operator work area for improved visibility
• 3 position fan speed: Low, Medium, High
• Ionization performance is consistent at all speeds and allows for use with sensitive applications, such as calibration, test, or repair procedures
• Sealed plenum air flow
• Prevents contamination from being introduced to workstation
• Auto-Feedback system (audible and visual alarm through single tri-color LED)
• Unit will automatically shut down and alarm if/when supply voltage drops
• 120/220 VAC input voltage selectable
• Unit can be used with 110V or 220V power sources
• Replaceable emitter pins allow for minimal downtime

Desco 60468 Chargebuster Overhead Ionizer Specs:

• Brand: Desco
• SKU: 60468
• Product Type: Overhead Ionizers
• Length: 37.0 in
• Height: 3.0 in
• Width: 6.0 in
• Air Flow: 150 cfm – 300 cfm
• Balance: ±10 volts typical, ±20 volts maximum
• Chassis: Powder coated steel
• Emitter Points: 0.050” diameter, tungsten
• Fuse: 400mA slow blow
• Ozone: less than 0.05 ppm
• Weight: 10 lbs
• Width: 6.0 in
