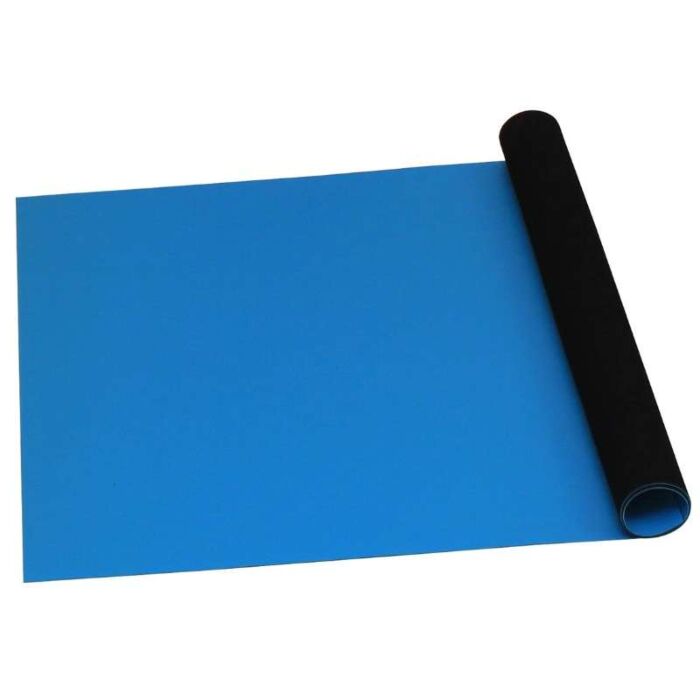

Desco 66401 Dissipative 2-Layer Worksurface Mat T2 Plus, Blue .060 X 30 X 40

The Desco 66401 Statfree T2 Plus Dissipative Dual Layer Rubber Roll, Blue, Oil Resistant, .06 in. x 30 in. x 40 ft., provides a worksurface that does not generate a static charge and will control the discharge rate from all conductors (including ESD susceptible items) that are placed on the surface. The mat featues a nitrile rubber oil resistant compound material, which may be used in soldering applications with flux and other chemicals; it is designed to limit oil absorption, improving electrical and physical properties throughout the lifespan of the material.The top layer of the mat meets the ANSI/ESD S20.20 worksurface required limit as well as the recommendation of ANSI/ESD S4.1 for contact with ESD susceptible items. The dedicated conductive bottom layer reduces the resistance to ground (Rtg) from the top of the surface to the groundable point ground and allows the mat to be used with ESD workstation monitors.

Desco 66401 Dissipative 2-Layer Worksurface Highlights:

• Dimensions: .06 in. x 30 in. x 40 ft.
• Made from dissipative dual layer rubber material
• Provides worksurface that does not generate static charge
• Controls discharge rate from all conductors (including ESD susceptible items) that are placed on the surface
• Oil-resistant nitrile rubber compound limits oil absorption to sustain electrical and physical properties of mat material
• Suitable for use in soldering applications with flux and other chemicals
• Blue colored dissipative top layer: 1 x 106 to < 1 x 109 ohms Rtt
• Meets ANSI/ESD S20.20 worksurface required limit
• Meets recommendation of ANSI/ESD S4.1 for contact with ESD susceptible items
• Black conductive bottom layer: < 1 x 106 ohms Rtt
• Reduces resistance to ground (Rtg) from top of surface to groundable point ground
• Allows mat to be used with ESD workstation monitors
• Mat formula includes Ultraviolet (UV) stabilizer additives:
• Stabilizes color retention
• Ensures ESD performance over time
• Eliminates surface layer deterioration and cracking when product is flexed

Desco 66401 Dissipative 2-Layer Worksurface Specs:

• Brand: Desco
• SKU: 66401
• Length: 40 ft
• Width: 30"
• Color: Blue
• Cord and Snap Included: No
• Number of Layers: 2
• RoHS Compliance: Yes
• Thickness: .060"
