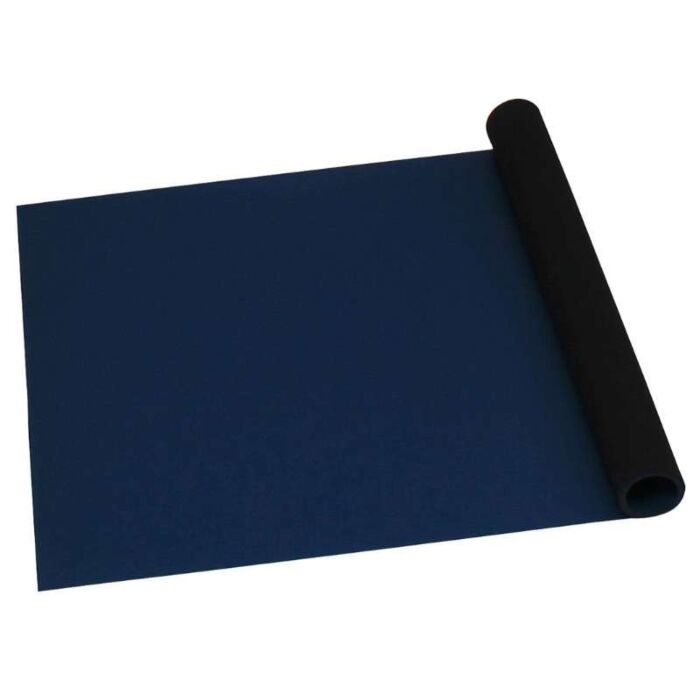

Desco 66419 Dissipative 2-Layer Rubber Mat Roll, Dark Blue, 0.060 x 48 x 20

The Desco 66419 Statfree T2 Plus Dissipative Dual Layer Rubber Roll, Dark Blue, Oil Resistant, .06 in. x 48 in. x 20 ft., provides a worksurface that does not generate a static charge and will control the discharge rate from all conductors (including ESD susceptible items) that are placed on the surface. The mat featues a nitrile rubber oil resistant compound material, which may be used in soldering applications with flux and other chemicals; it is designed to limit oil absorption, improving electrical and physical properties throughout the lifespan of the material. The top layer of the mat meets the ANSI/ESD S20.20 worksurface required limit as well as the recommendation of ANSI/ESD S4.1 for contact with ESD susceptible items. The dedicated conductive bottom layer reduces the resistance to ground (Rtg) from the top of the surface to the groundable point ground and allows the mat to be used with ESD workstation monitors. The mat includes Ultraviolet (UV) stabilizer additives, which stabilize color retention, ensure ESD performance over time, and eliminate surface layer deterioration when the product is flexed.

Desco 66419 Dissipative 2-Layer Rubber Mat Roll, Highlights:

• Lead-free RoHS compliant
• Dissipative Dual Layer ESD Worksurface provides a worksurface that does not generate a static charge and will control the discharge rate from all conductors (including ESD susceptible items) that are placed on the surface1
• NEW Nitrile Rubber Oil Resistant Compound improved material compound limits oil absorption to improve electrical and physical properties through the lifespan of the material. May be used in soldering applications with flux and other chemicals
• Dissipative (1 x 106 to <1 x 109 ohms Rtt) Top Layer meets ANSI/ESD S20.20 worksurface required limit and recommendation of ANSI/ESD S4.1 for contact with ESD susceptible items
• Conductive (<1 x 106 Rtt) Bottom Layer reduces the resistance to ground (Rtg) from the top of the surface to the groundable point ground and allows the material to be used with ESD workstation monitors
• Ultraviolet (UV) Stabilizer Additives stabilizes color retention, ensures ESD performance over time and eliminates surface layer deterioration resulting in cracking when the product is flexed
• Laser Engraved With ESD Protective Symbol, Specs, and Manufacturer Information2 identifies ESD protective product for control & auditing purposes

Desco 66419 Dissipative 2-Layer Rubber Mat Roll, Specs:

• Brand: Desco
• SKU: 66419
• Product Type:Dual Layer Rubber Roll Mat
• Material Properties:DissipativeConductive
• Color:Dark Blue
• Dimensions:.060" x 48" x 20'
• Number of Layers:2
• Dimensions: .06 in. x 48 in. x 20 ft
• Suitable for use in soldering applications with flux and other chemicals
• Made from dissipative dual layer rubber material
• Provides worksurface that does not generate static charge
• Controls discharge rate from all conductors (including ESD susceptible items) that are placed on the surface
• Oil-resistant nitrile rubber compound limits oil absorption to sustain electrical and physical properties of mat material
