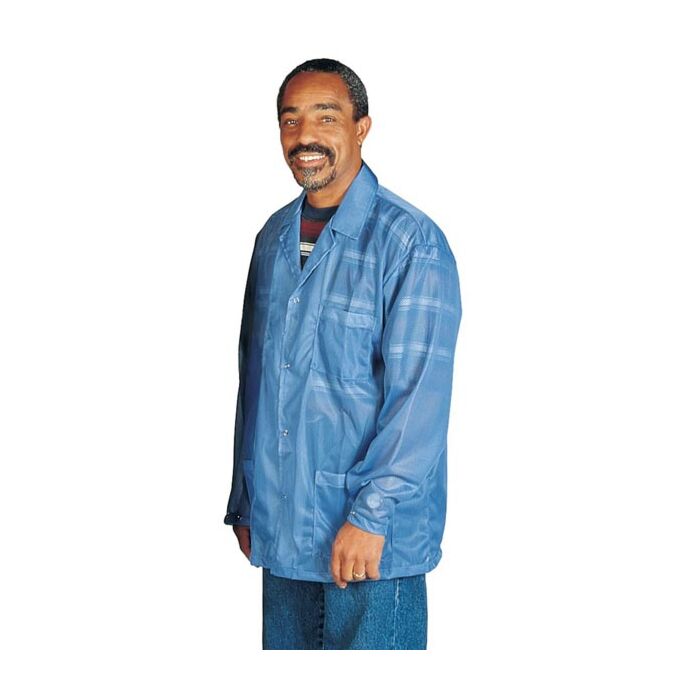

Desco 73699 Statshield ESD-Safe Jacket with Snaps

The Desco 73699 Statshield ESD Smock, Jacket with Snaps, Blue, Size X-Small is designed to be antistatic, low tribocharging, and create a Faraday Cage around the torso and arms of the wearer to protect ESD susceptible items from electrostatic fields generated by the operator's clothing. Static control garments are intended to attenuate electrostatic fields that may be present on personnel clothing. The 73699 meets the requirement for Groundable Static Control Garment System per ANSI/ESD S20.20 required limit of < 3.5 x 107 ohm Rtg tested per ANSI/ESD STM2.1 and ESD TR53 (23° ± 1° C, 12% ± 3% RH, and 50% ± 5% RH).

Desco 73699 Statshield ESD-Safe Jacket Highlights:

• Groundable Static Control Garment System Tested Per ANSI/ESD S20.20-2014 (Rtg < 3.5 X 107 ohms) Requirements, per ANSI/ESD STM2.1
• Allows operators and smock to be bonded or electrically connected to ground to prevent ESD events in ESD Protected Areas
• Creates Faraday Cage effect
• Charges on worker clothing shielded, protecting ESD devices
• Hip-To-Cuff Grounding grounds operator with no need for a cord to be attached to the operator's wrist
• Snaps on cuff of smock
• Wristband snaps to inside cuff
• Minimum 9% carbon conductive nylon fibers woven in chain-link design
• Provides continuous and consistent charge dissipation
• Panel to panel conductivity
• Prevents isolated charged conductor in ESD protected area

Desco 73699 Statshield ESD-Safe Jacket Specs:

• Brand: Desco
• SKU: 73699
• Garment Type: Jacket
• Product Type: Long Sleeve
• Size: X-Small
• Closure Type: Snap
• Chest Size: 30 to 32in
• Sleeve Size: 33-3/8in
• Number of Pockets: 3
• Flash Point: 1040°F
• Resistance Properties: Surface Resistant
• Color: Blue
• Material: Polyester; Carbon Nylon
• Length: 13.0 in, 29in
• Width: 12.0 in
• Height: 1.0 in
• Standards Met: ANSI, ESD S20.20, STM2.1, TR53
• Applications: Grounding, Testing, Maintenance
• ESD-Safe: Yes
