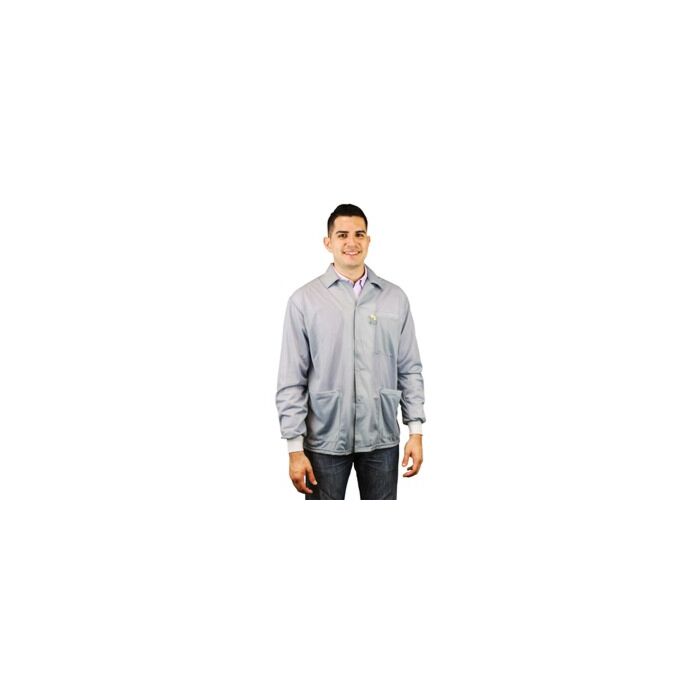

Desco 73780 Statshield ESD-Safe Jacket with Cuffs

The Desco 73780 Statshield Smock, Jacket with Knitted Cuffs, Grey, Size 2XL is designed to be antistatic, low tribocharging, and create a Faraday Cage around the torso and arms of the wearer to protect ESD susceptible items from electrostatic fields generated by the operator's clothing. Static control garments are intended to attenuate electrostatic fields that may be present on personnel clothing. The 73780 meets the requirement for Groundable Static Control Garment System per ANSI/ESD S20.20 required limit of < 3.5 x 107 ohm Rtg tested per ANSI/ESD STM2.1 and ESD TR53 (23° ± 1° C, 12% ± 3% RH, and 50% ± 5% RH).

Desco 73780 Statshield ESD-Safe Jacket Highlights:

• Groundable Static Control Garment System Tested Per ANSI/ESD S20.20-2014 (Rtg < 3.5 X 107 ohms) Requirements, per ANSI/ESD STM2.1
• Allows operators and smock to be bonded or electrically connected to ground to prevent ESD events in ESD Protected Areas
• Minimum of 9% carbon conductive nylon fibers woven in chain-link design
• Provides continuous and consistent charge dissipation throughout lifetime of smock
• Creates Faraday Cage effect around torso and arms of operator
• Shields ESD charges from operators' clothing from damaging ESD sensitive devices
• Panel to panel conductivity prevents isolated charged conductor in ESD Protected Area
• Hip-To-Cuff Grounding grounds operator with no need for a cord to be attached to the operator's wrist
• Secure badge holders to tab to avoid damage to other parts of the smock
• Two Sleeve Pen Pockets holds pens or small tools in safe and convenient location for operator

Desco 73780 Statshield ESD-Safe Jacket Specs:

• Brand: Desco
• SKU: 73780
• Garment Type: Jacket
• Product Type: Long Sleeve
• Size: 2X-Large
• Cuff Type: Knitted Cuff
• Closure Type: Snap
• Fits Chest Size: 50 to 52in
• Chest Size: 50 to 52in
• Sleeve Size: 35-1/2in
• Number of Pockets: 4
• Flash Point: 1040°F
• Resistance Properties: Surface Resistant
• Color: Gray
• Material: Polyester; Carbon Nylon
• Length: 12.0 in, 31.5in
• Width: 12.0 in
• Height: 1.0 in
• Standards Met: ANSI, ESD S20.20, STM2.1, TR53
• Applications: Grounding, Testing, Maintenance
• ESD-Safe: Yes
• Fabric Weight: 2.2 oz/sq yd
