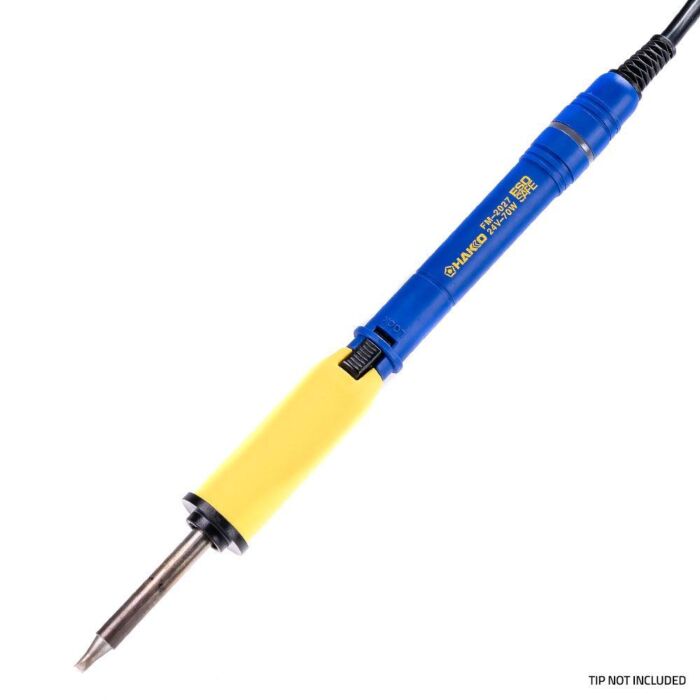

HAKKO FM2027-01 Nitrogen Locking Soldering Iron Kit with Sleeve Assembly & Pad

The Hakko A1142B is a 3 mm hot air single bent nozzle. The durable nozzle is designed for use with 850, 852 and 702 stations. The FM2027-01 conversion kit includes the locking-connector handpiece and sleeve (grip) and heat pad. The T15 Tip Series are used with this handpiece. Note: Tips not included.

• Product Type: Soldering Iron Kit
• Power consumption: 70 W
• Leak voltage: 24 V
• Cord length: 3.9 ft.
• Tip to ground resistane: < 2 ohms
• Type: Iron
• Tip Shape: Bevel Conical Chisel Conical Bent Knife Quad Tunnel Spatula Concave Slot
• For Use With: FM-202 Soldering Station, FM-203 Soldering Station, FM-204 Soldering Station, FM-206 Soldering Station
• Material: Iron
• Material Category: Metal
• Includes: Sleeve Assembly (Yellow), Connector Assembly, Heat Resistant Pad, Instruction Manual
• Standards Met: RoHS Compliant

• Brand: HAKKO
• SKU: FM2027-01
• Tip Series: T12 T15
• ESD Safe (Yes/No): Yes
• Power Rating: 70W
• Length: 9.75 in
• Width: 2.5 in
• Height: 1.5 in
• Cord Length: 1.2m
• Minimum Operating Temperature: +200°C
• Maximum Operating Temperature: +450°C
• Power Rating: 70W
• Tip Size: 2.4mm
• Voltage Rating: 24V
