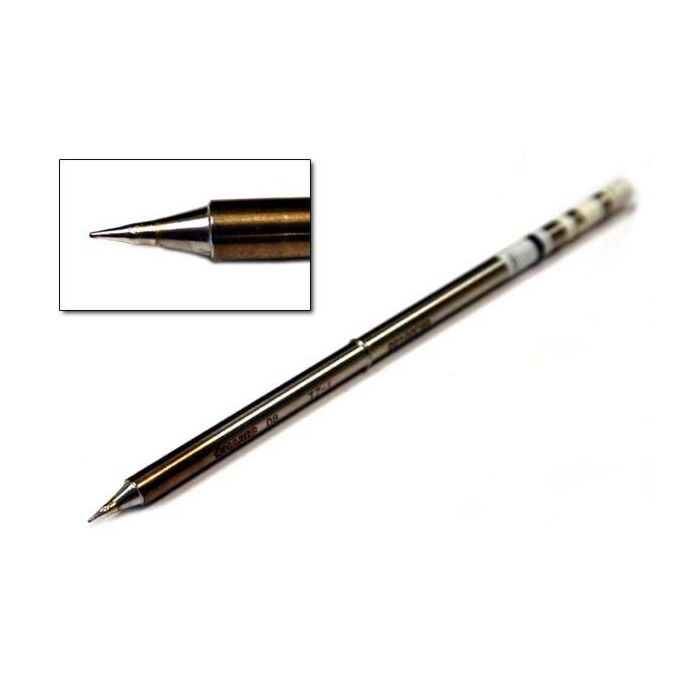

HAKKO T15-I Sharp Conical Solder Tip for FM-203/204/205/206 Iron

The Hakko T15-I has a thin conical end and is an ultrafine tip which is best suited for soldering at narrow pitches, etc. It is the best for soldering micro components such as 0603, etc. and for repairing high-density mounting P. W. Bs. such as in cellular phones, etc. This tip is used with the following Hakko Soldering Stations and Systems:

• Hakko FM-206 3-Port Soldering Station (FM2027 Handpiece)
• Hakko FM-204 Soldering Station
• Hakko FM-203 Soldering Station
• Hakko FX-951 Soldering Station
• Hakko FM-202 Soldering System
• Hakko FP-102 Soldering Station
• Hakko FP-101 Soldering Station

• Product Type: Soldering Tip
• Built-in patented heating element
• Fast thermal recovery
• Superior tip plating provides for a long tip life
• Higher temperature tolerances than T7 series
• For Use With: Hakko FM-204 - Hakko FM-2027 (70W) Handpiece, Hakko FM-206 - Hakko FM-2027 (70W) Handpiece, Hakko FX-950 - Hakko FM-2027 (70W) Handpiece, Hakko FX-951 - Hakko FM-2028 (70W) Handpiece, Hakko FX-952 - Hakko FM-2028 (70W) Handpiece, Hakko FM-202 - Hakko

• Brand: HAKKO
• SKU: T15-I
• Series: T15 Series
• Size: R0.2 x 9.5mm Conical
• Tip Shape: Conical
• Tip Size: 0.2mm
• Tip Length: 9.5mm
• Length: 5.9 in
• Width: 0.2 in
• Height: 0.2 in
