JBC C245951 Bevel Cartridge Soldering Tip, 3.8mm

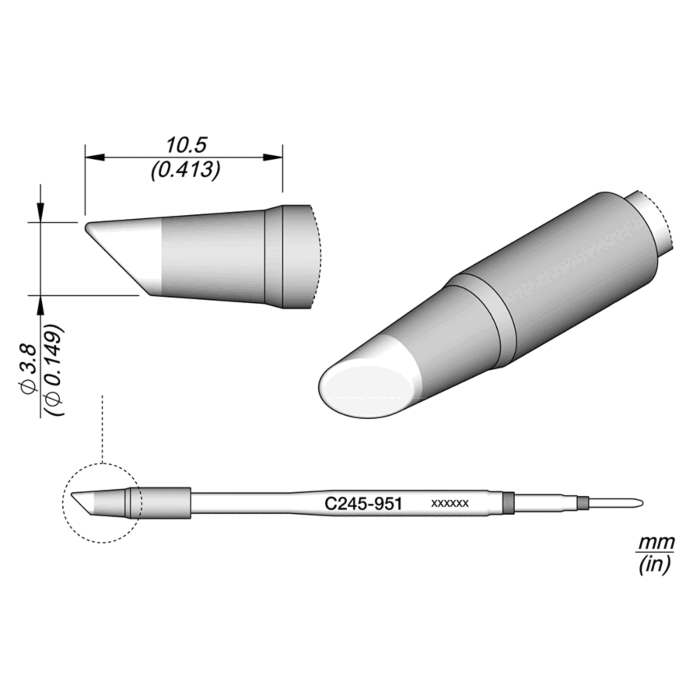

The C245-951 is a C245 Series Solder Tip Cartridge. This tip features a 45° Bevel shape, ideal for general soldering applications and SMD components. The C245-951 cartridge offers a 0.149" tip diameter x 0.413" long (3.8 x 10.5mm). This tip is constructed with High Thermal Efficiency (HTE), each cartridge is characterized by their optimized tip geometries which achieve thermal efficiencies of up to 40%. The C245 Series cartridges are designed for use with the T245-A, T245-PA and T245-NA Soldering Irons.

JBC C245951 Bevel Cartridge Soldering Tip Highlights:

• C245 cartridge range is JBC's widest one, with many shapes, sizes and special models
• Appropriate for general soldering purposes and they are perfect for both SMD components or for applications with high power requirements such as ground plane soldering
• Works with T245 Handpieces
• JBC Long Life Tips offer instant heat up, excellent heat transfer and great durability

JBC C245951 Bevel Cartridge Soldering Tip Specs:

• Brand: JBC Tools
• SKU: C245951
• Product Type: Soldering Tip
• Style: 45° Bevel
• Tip Diameter: 0.149" (3.8mm)
• Length (Working Distance): 0.413" (10.5mm)
• Tip Size: 3.5 mm
