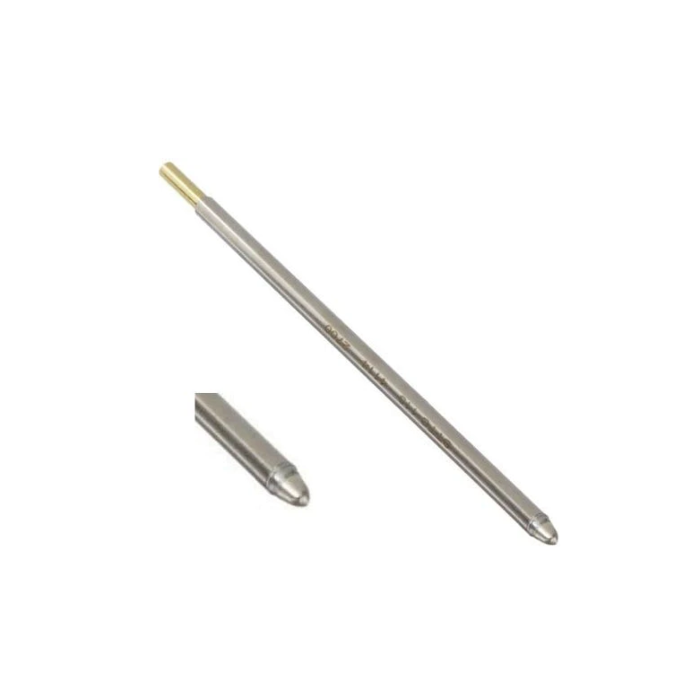

Metcal CVC-7CH0030S 90° Standard Chisel Cartridge Soldering Tip, 3.0mm

The Metcal CVC-7CH0030S is a CVC Series cartridge that provides a wide range of options for through-hole and SMD Rework. For use with the CV-5200 Soldering Systems. CVC-, SMC- Solder Tip Cartridges are the standard soldering tip range for the Metcal CV-5200, CV-500, MX-500, MX-5200 and MX-5200 series soldering systems. All cartridges are available in 4 temperature ranges, 600-series nominally 330 ˚C, 700-series nominally 390 ˚C, 800-series nominally 440 ˚C and 900-series nominally 470 ˚C.

The temperature/series is designated by the by the first digit in the numerical part of the part number e.g. 600 will all be CVC-/SMC-0xx, 700-series will be CVC-/SMC-7xx, 800-series will be CVC-/SMC-8xx and 900-series will be CVC-/SMC-9xx. Metcal recommends the 700-series for the majority of applications. The 600-series for light load or low temperature applications, 800/900-series for high temperature and thermally demanding applications. Can be used with leaded and lead-free solder. The Metcal "SmartHeat®-Technology" automatically adjusts power levels during each soldering operation.

Metcal CVC-7CH0030S 90° Standard Chisel Cartridge Soldering Tip Highlights:

• Standard chisel cartridge
• Compatible with CV-H1-AV advanced LED handpiece
• 700 series heater for most standard applications
• Can be used with leaded and lead-free solder
• The Metcal "SmartHeat-Technology" automatically adjusts power levels during each soldering operation

Metcal CVC-7CH0030S 90° Standard Chisel Cartridge Soldering Tip Specs:

• Brand: Metcal
• SKU: CVC-7CH0030S
• Angle: 90°
• Series: CVC
• Size: 3.0 mm
• Shape: Chisel
• Type: Solder cartridge
• Designator: Standard
• For Use With: Metcal CV Series
• Lead Free Solder Compatible: Yes
• Compatible with: CV-H1-AV Advanced LED Handpiece
