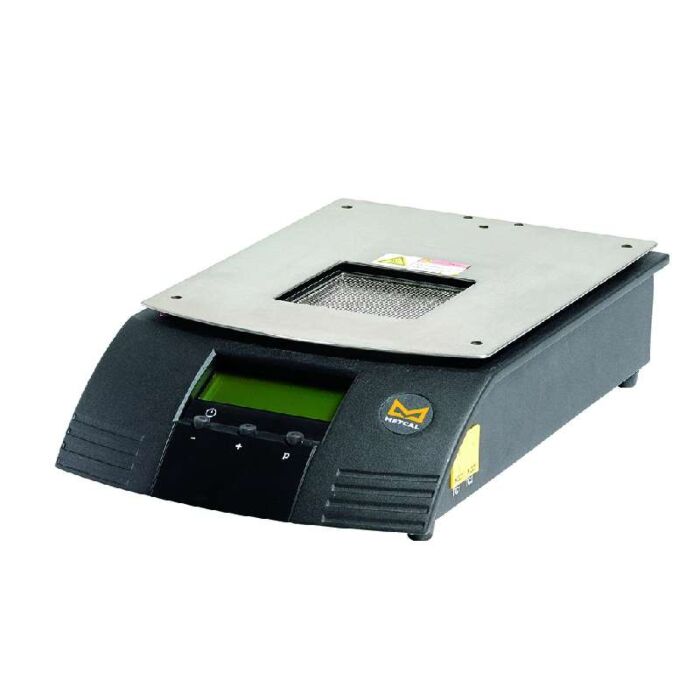

Metcal PCT-1000 ESD-Safe Programmable Preheater

The Metcal PCT-1000 is a programmable preheater that provides users the ability to increase heat capacity with highly controlled thermal output. The PCT-1000 can be used in a variety of processes including soldering, desoldering, SMD rework operations and, with its added heat capacity, will provide faster production rates while lowering overall process temperatures.

Metcal PCT-1000 ESD-Safe Programmable Preheater Highlights:

• Increases through-put and reliability of soldering, desoldering and SMD rework processes
• Four-zone programmable settings for time and temperature to create optimum thermal profiles for varying application demands
• storage for up to fifty user defined profiles for quick, easy set-up
• User selectable control of heating at source (internal) or at target (external)
• Controlled cool-down eliminates thermal shock to PCB and components
• System safety feature automatically shuts off heating when fan is stopped
• High efficiency vortex heater design maximizes ramp to temperature for increased productivity

Metcal PCT-1000 ESD-Safe Programmable Preheater Specs:

• Brand: Metcal
• SKU: PCT-1000
• ESD Safe: No
• Product Type: Programmable Pre-Heater
• For Use With: MRS-1100A Modular Rework System
• Power Rating: 1200W
• Voltage Rating: 100 to 240V ac
• Maximum Operating Temperature: +752°F
• Minimum Operating Temperature: +77°F
• Dimensions: 13 x 8 x 3in
• Length: 13in
• Width: 8in
• Height: 3in
