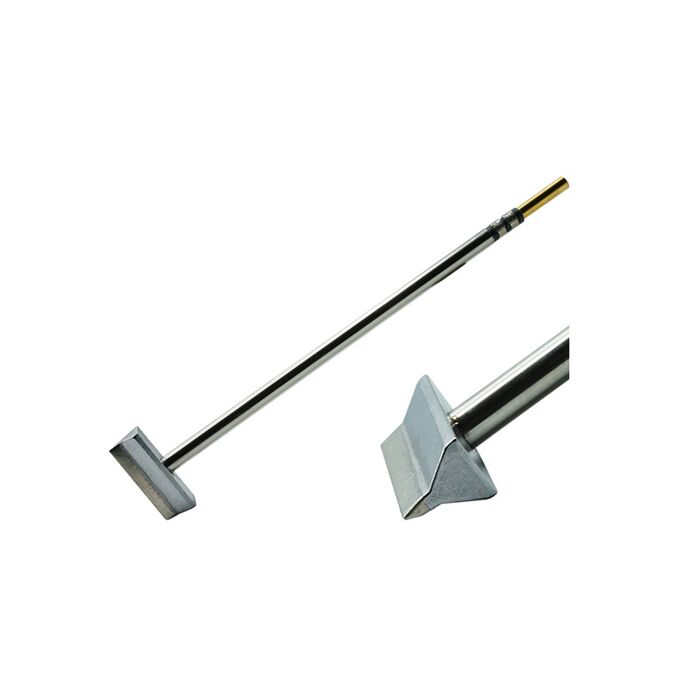

Metcal SMTC-1BL250 Blade Solder Tip Cartridge

The SMTC-1BL250 is a SMTC Series Long Blade Style Tip Cartridge. The SMTC Series Tip Cartridges are designed for use with the MX Series Solder Systems, using the MX-H1-AV Advanced Hand-Piece or the MX-RM3E Coil Assembly Hand-Piece. This tip features a long blade working distance, ideal for soldering and/or reworking restricted components on populated boards. The SMTC-1BL250 measures as (Overall Blade Width) = 1.0" (25mm) wide x 0.02" (0.5mm) Blade Tip Thickness x 0.36" (9.14mm) Working Distance (Length). This tip cartridge offers a maximum temperature of 775°F (412°C), designed for most standard applications.

Metcal SMTC-1BL250 Blade Solder Tip Cartridge Highlights:

• Metcal Rework soldering cartridges are optimised for transmitting a high level of heating power and provide a constant temperature
• They provide the necessary power in accordance with heat requirements
• Different temperature series are available depending on the heat requirements
• Tip cartridge offers a maximum temperature of 775°F (412°C), designed for most standard applications
• Usable for leaded and lead-free solder
• Metcal SmartHeat-Technology will adjust delivered power during soldering to suit the application

Metcal SMTC-1BL250 Blade Solder Tip Cartridge Specs:

• Brand: Metcal
• SKU: SMTC-1BL250
• Product Type: Soldering Tip
• Series: SMTC Series
• Tip Shape: Blade
• Tip Size: 1in
• For Use With: MX-500 Systems, MX-5000 Systems, MX-5200 Systems, MX-RM3E Hand-Piece, MX-H1-AV Hand-Piece
