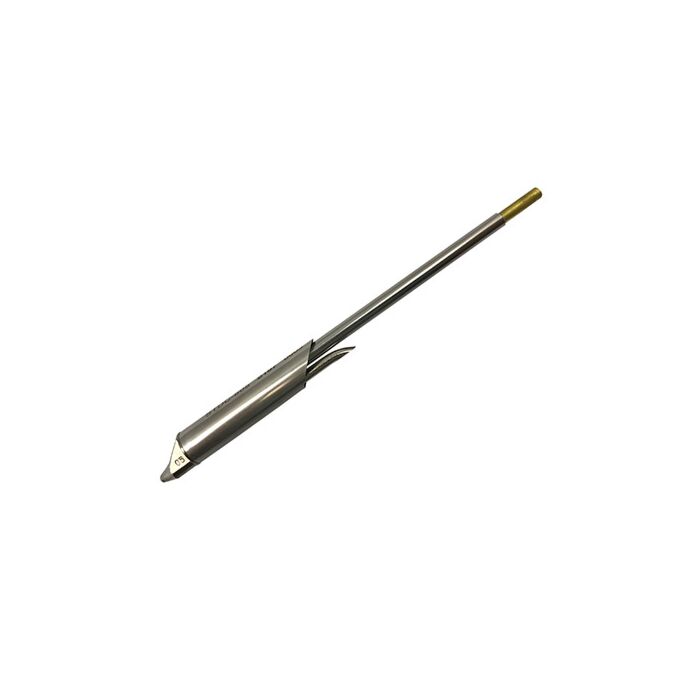

Metcal STDC-805 STDC Standard Cartridge Desoldering Tip, 800 Temp Series

The Metcal STDC-805 tips are highly durable and designed for high heat transfer, making desoldering on multi-layer boards much easier. For use with the MX Series and Plated-Through-Hole Component Desoldering System with the MX-DS1 Desoldering Gun Hand-piece. The STDC-805 is a STDC Series, "Standard" Desolder Tip. This nozzle is designed for use with the MX-DS1 Hand-Piece. The STDC-805 offers a maximum temperature of 905°F (486°C), ideal for most general production soldering applications. This tip features an Inner Diameter (I.D) "A" of 0.05" (1.27mm), Outer Diameter (O.D) "B" of 0.08" (2.03mm) and Length/Working Distance "C" 0.42" (10.66mm).

Metcal STDC-805 STDC Standard Cartridge Desoldering Tip Highlights:

• STDC-Desolder Tip Cartridges are the standard desoldering tip range for the Metcal MX-500, MX-5200 and MX-5200 series desoldering systems
• STDC-Cartridges are available in 2 temperature ranges, 700-series nominally 390 ˚C and 800-series nominally 450 ˚C
• The temperature/series is designated by the first digit following the dash in the part number. e.g
• 700-series will be STTC-1xx and 800-series will be STTC-8xx
• Metcal recommends the 700-series for the majority of applications
• The 800-series for high temperature and thermally demanding applications
• Can be used with leaded and lead-free solder
• The Metcal "SmartHeat-Technology" automatically adjusts power levels during each soldering operation

Metcal STDC-805 STDC Standard Cartridge Desoldering Tip Specs:

• Brand: Metcal
• SKU: STDC-805
• Series: STDC Series
• Tip Length: 0.42 in
• Tip Shape: Standard
• Tip Size: 0.05 ID x 0.08 ODin
• Product Type: Desoldering Tip
• For Use With: MX-500 Systems, MX-5000 Systems, MX-5200 Systems, MX-DS1 Desoldering Hand-Piece
