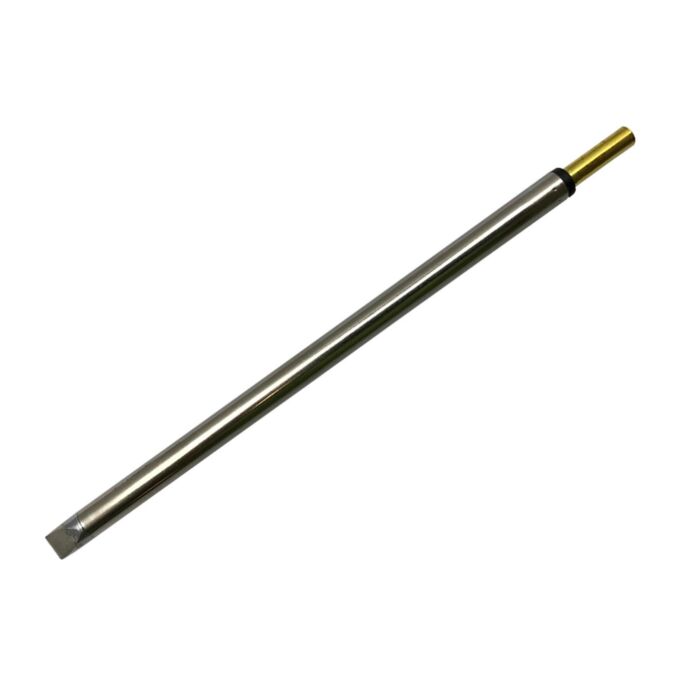

Metcal STP-CH50 STP Series 30° Chisel Cartridge Soldering Tip, 5.00mm

The Metcal STP-CH50 Cartridges are for use with the MFR-H1-SC soldering cartridge hand-piece of the MFR Single and Dual Platforms (MFR-1100 and MFR-2200). They provide a wide range of options addressing specialized soldering and rework applications. The second digit denotes substrate material. The STP-CH50 is a SxP Series, Chisel (30°) Solder Cartridge. This cartridge is designed for use with the MFR-H1-SC2 Hand-Piece. The STP-CH50 is built with a "T" (Temperature) material substrate. Ideal for highly temperature sensitive component soldering and rework. This cartridge tip measures 0.2" wide x 0.3" long (5 x 7.6mm). The STP-CH50 offers a maximum temperature of 690°F (366°C). The 30° chisel design offers versatility, allowing for precise soldering in tight spaces or on components with specific geometries.

Metcal STP-CH50 STP Series 30° Chisel Cartridge Soldering Tip Highlights:

• Can be used with leaded and lead-free solder
• The SFP temperature series are nominally 390 ˚C
• STP-series are nominally 330 ˚C for light load application
• Metcal recommends the SFP-series for most applications
• The second letter in the part number designates the temperature series
• The Metcal "SmartHeat-Technology" adjusts power levels automatically based on the demand of the application
• SxP-Solder Tip Cartridges are the standard soldering tip range for the Metcal MFR-1110, MFR-2210 and MFR-1351-series soldering systems
• However, Metcal offers a higher temperature series designated SCP, nominally 450 ˚C, for high temperature and thermally demanding applications

Metcal STP-CH50 STP Series 30° Chisel Cartridge Soldering Tip Specs:

• Brand: Metcal
• SKU: STP-CH50
• Series: STP
• Tip Angle: 30°
• Tip Size: 0.2 in
• Tip Shape: Chisel
• Tip Length: 0.3 in
• Lead-Free Compatible: Yes
• Product Type: Soldering Tip
• For Use With: MFR-1110 Systems, MFR-1161 Systems, MFR-1351 Systems, MFR-2211 Systems, MFR-2241 Systems, MFR-H1-SC Hand-Pieces
