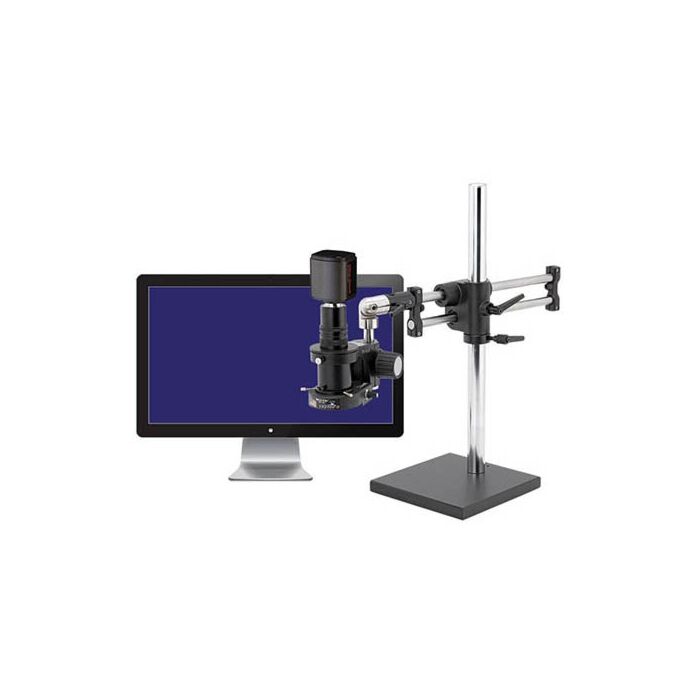

O.C. White TKMACZ-LV2-16 ESD-Safe Macro Zoom Analog Video Inspection System

The O.C. White TKMACZ-LV2-16 MacroZoom HD Video Inspection System with 5MP Hybrid HDMI/USB Digital Camera, 22" Monitor, Double Ball Bearing Base, and LED Ring Light is a specialized ergonomic inspection system that pairs a large magnification range with an unheard of working distance, depth of field (area vertically in focus) and user control. The system fills the need for large field of view inspection, as well as almost unlimited working distance. It also features a variable focal optical design, which allows almost instantaneous refocusing at any height. Unlike a microscope, which limits you to strict working distances, the MacroZoom's one-touch variable focal optical design allows for refocusing in a flash, at any working height. The system is built with an ESD safe construction and materials. Onboard software allows for basic image capture, video capture, calibrated measurement, digital zoom, screen inversion, ROI binning, and more. Still images can be easily transferred to any external PC for archiving, emailing, or documenting in-process. The low light sensitivity that the 5MP Hybrid camera possesses allows it to be used for all imaging needs - it is even sensitive enough to use in fluorescence imaging. The TKMACZ-LV2-16 MacroZoom High Definition Video Inspection System also includes the model LV2000 High Intensity 5700K LED Ring Illuminator, which is equipped with a 9 LED surface mount array and exclusive thermal management system. The LV2000 LED Illuminator is the brightest on the market and even rivals 150W halogen illuminators. The LV2000 has a total energy consumption of only 8W and also features a 100-240V (50/60Hz) auto switchable transformer design.

O.C. White TKMACZ-LV2-16 ESD-Safe Macro Zoom Analog Video Inspection System Highlights:

• 1 - 60x standard magnification range (up to 120x with optional parts)
• Unlimited working distance - 6 in. to infinity
• Equipped with 5MP hybrid HDMI/USB camera
• Camera includes built-in software, allowing for operation without a PC
• Full 1080 resolution (300 dpi) provides super detailed views
• 22" LED monitor displays crisp, clear images
• Ergonomic design with "heads-up" viewing reduces eyestrain and neck fatigue
• Low light sensitivity enables camera to be used for all imaging needs
• 24" tall double ball bearing base allows high working distance adjustability on production bench
• 'Close up' auxiliary lens increases magnification range to 80x
• HDMI and USB ports on cameras allow for easy connection to a monitor or PC
• Built with ESD safe materials and design

O.C. White TKMACZ-LV2-16 ESD-Safe Macro Zoom Analog Video Inspection System Specs:

• Brand: O.C. White
• SKU: TKMACZ-LV2-16
• Product Type: Video Inspection System
• Working Distance: 5 to 12in
• Magnification: 1 to 60X
• Camera Type: NTSC Camera
• Monitor Dimensions: 19in
• Illuminated: Yes
• Illumination Type: LED Ring Light
• Base Type: Ball Bearing Base
• Power Source: Mains
• Color: Black
