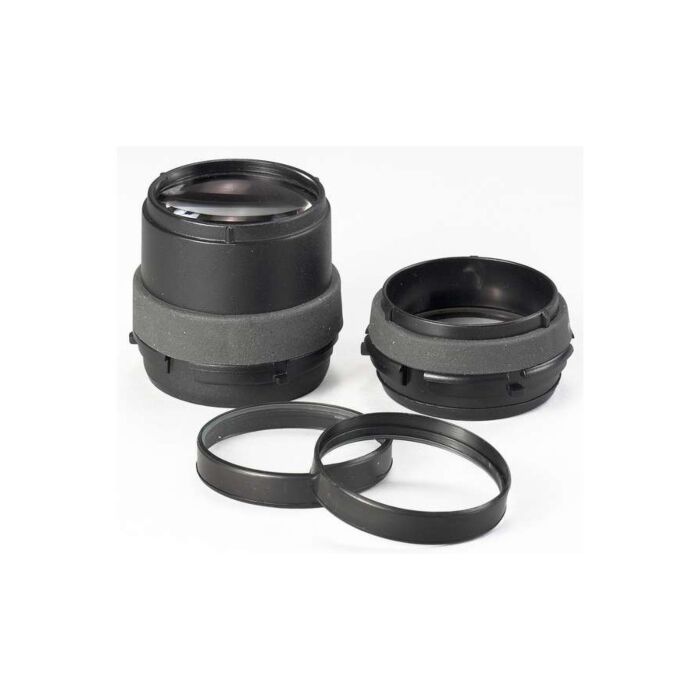

Vision Engineering MCO-008 Mantis Compact Objective Lens, 8X

The Vision Engineering MCO-008 is a 8X objective lens for use with the Mantis Compact stereo magnification system. Mantis systems combine the viewing ease of bench magnifiers with the high resolution and magnification advantages of eyepiece microscopes. The large viewing area provides maximum comfort and eliminates the fatigue, eye, neck and back strain you can get from using eyepiece scopes. Wearing safety or regular glasses are no problem. Your choice of magnification options let you customize your system for any assembly, inspection or rework application. The Mantis Compact models deliver the latest in optical design and LED illumination, and boast a wide array of applications. The Compact delivers all the same ergonomic advantages for bench magnifier users at an affordable price - especially good for labs and educational facilities.

Vision Engineering MCO-008 Mantis Compact Objective Lens Highlights:

• Quick move G-clamp base
• 9VDC external plug transformer power supply
• Simply ‘twist and lock’ to change the objective lens
• For use with the Mantis Compact stereo magnification system
• Cleanroom assembled and sealed for use in dirty environments
• MCO-008 boasts exceptional optical quality, providing clear and detailed images for precise observation
• Choice of counter-balanced swing arm or stable bench stand with dimmable cold, long-life true color LED illumination
• The Mantis Compact Objective Lens enhances depth perception, allowing users to perceive depth and details with exceptional clarity
• Disposable lens protection caps are available to protect your objective lens from damage when soldering, or in aggressive environments

Vision Engineering MCO-008 Mantis Compact Objective Lens Specs:

• Brand: Vision Engineering
• SKU: MCO-008
• Width: 2.0 in
• Height: 2.0 in
• Length: 3.0 in
• Magnification: 8X
• Product Type: Lens
• Series: Mantis Compact
• LEDs: 20 LEDs; 9,400 LUX
• Working Distance: 58.5 mm
• Product Range: MCO Series
• Field of View: 0.56" (14.3mm)
• Working Distance: 2.30" (58.5mm)
• For Use With: Mantis Compact Stereo Microscopes
