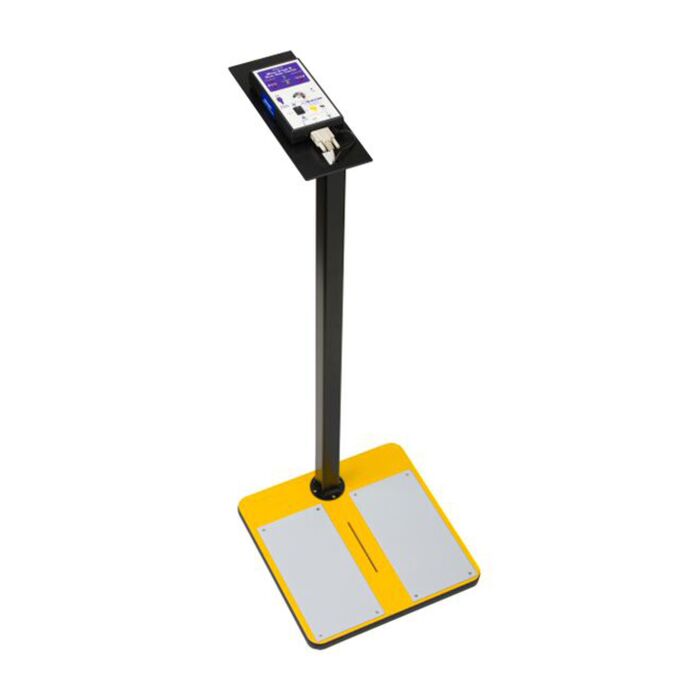

ACL Staticide 750 Combo Tester for Wrist Straps & Heel Grounders with Stand

The ACL Staticide 750 Combo-Tester measures electrical resistance of wrist straps and heel grounders simultaneously and individually. It can also do what pass/fail testers cannot: Give actual resistance readings and store data. When the software is used, test results are stored on a computer which allows you to monitor and analyze test information and help manage your company's static control program and remain compliant to ESDA S20.20.

ACL Staticide 750 Combo Tester Highlights:

• Simultaneous testing for wrist and feet
• Adjustable limits from 500k and 750k for low setting and 2M to 100M ohms high setting
• Optional circuit relay for security doors
• Optional card readers available
• Multiple units can be networked via company LAN for data compiling
• Compatible with latest Windows based software
• Auto-generate reports and email them to supervisors
• Includes calibration certificate traceable to NIST

ACL Staticide 750 Combo Tester Specs:

• Brand: ACL Staticide
• SKU: 750
• Test Voltage: 19 volts DC ± (open circuit)
• Resistivity Ranges: Wrist Straps
• High Range: 2M, 5M, 10M, 25M, 35M, 50M, 75M, 100M ohms
• Low Range: 500k, 750k ohms
• Resistivity Ranges: Footwear
• High Range: 2M, 5M, 10M, 25M, 35M, 50M, 75M, 100M ohms
• Low Range: 500k, 750k ohms
