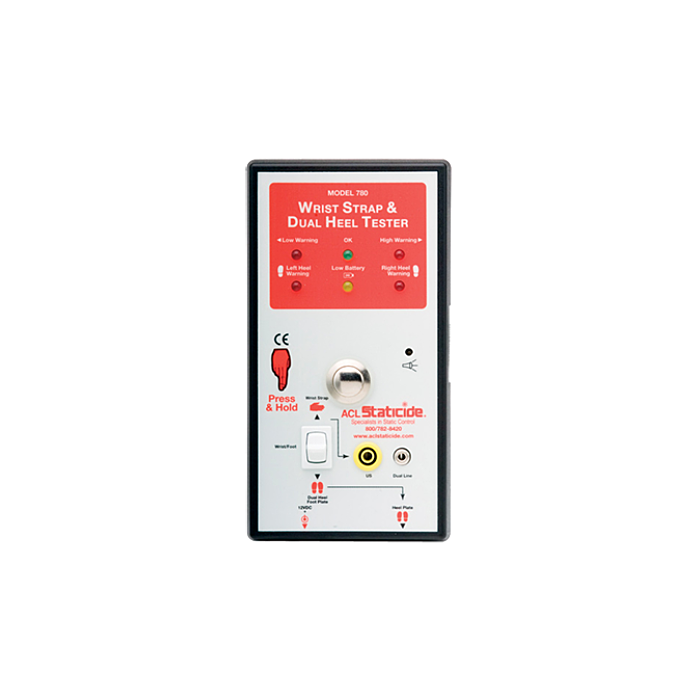

ACL Staticide 780 Economy Combo Wrist Strap & Dual Heel Tester with Footplate

The ACL Staticide ACL 780 is a 24 V rated voltage combo tester. The colored LED display shows test results with speed, ease and clarity.The ACL 780 Economy Combo-Tester measures electrical resistance of wrist straps and heel grounders simultaneously and individually. This is a good alternative for companies seeking a personal auditing station but do not need to save data. Adjustable limits add versatility for ESD managers that may need to modify verification plans.
When you don't need to record data by hooking up your tester to a computer, use this Staticide ACL 780 Economy Combo Tester, which makes it easy to measure the electrical resistance of a wrist strap and heel grounder at the same time or separately. You can adjust the measurement limits from 500 to 750 kΩ on the low setting and from 2 to 100 MΩ on the high setting to suit your specific needs.

ACL Staticide 780 Economy Combo Wrist Strap Highlights:

• Simultaneous testing for wrist and feet
• Optional circuit relay for security doors
• Includes calibration certificate traceable to NIST
• Adjustable limits from 500k and 750k for low setting and 2M to 100M ohms high setting
• Comes with a calibration certificate traceable to NIST
• Color LEDs make it easy to view the test results without the need for a computer
• Easily modify verification plans thanks to the adjustable measurement limits from 500 to 750 kΩ on the low setting and from 2 to 100 MΩ on the high setting

ACL Staticide 780 Economy Combo Wrist Strap Specs:

• Brand: ACL Staticide
• SKU: 780
• Product Type: Combo Tester
• Voltage Rating: 24V
• Power Source: Battery; Mains
• Accuracy: ±10%
• Length: 23.0 in.
• Height: 7.0 in.
• Width: 16.0 in.
• Maximum Operating Temperature: +100°F
• Minimum Operating Temperature: +32°F
• Standards Met: ANSI, ESDA, UL Listed
